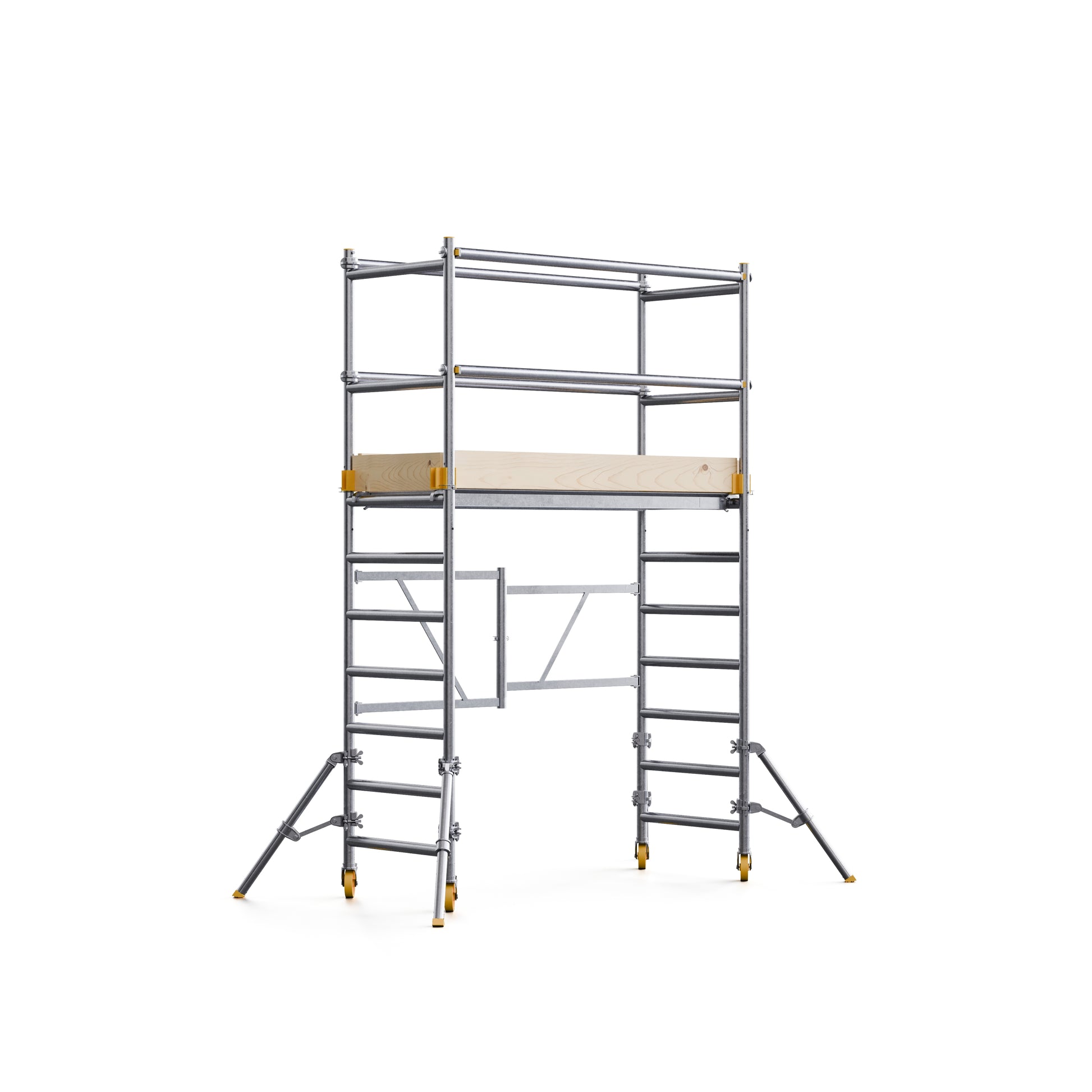

CUSTERS® Foldy 13SX Pro Series Aluminum Folding Scaffold Tower

Guardrails + Outriggers + Toeboard Holders Included
Safe Working Height: 12/13 ft | Platform Height: 6 ft | Heavy Duty Rating

The CUSTERS® Foldy 13SX Pro Series is a professional aluminum folding scaffold tower packaged as a complete, worksite-ready solution. This configuration includes guardrails, outriggers, and toeboard holders—making it the ideal option for contractors and facility teams who want the speed and mobility of Foldy, with the added stability and protection needed for higher access work.

If your crews are working overhead, moving room-to-room, and need a safer alternative to ladders without scheduling a lift, the 13SX is the premium “do it right” Foldy package.

✅ Why Contractors Choose the Foldy 13SX

• Fast setup for repeat work and service calls

• Guardrails included for safer work-at-height access

• Outriggers included for added stability

• Toeboard holders included for a more complete worksite-ready configuration

• Lightweight aluminum construction for transport and repositioning

• Ideal for maintenance, installation, restoration, and facility work

✅ North American Load & Duty Rating

• Max load capacity: 1,500 lbs (2 persons + equipment)

• Maximum workload per platform: 75 lb/ft² (Heavy Duty)

• Only one working level may be loaded at a time

✅ Working Height (This Configuration)

This listing is for the Foldy configuration with:

• Safe working height: 12/13 ft

• Platform height: 6 ft

✅ Included in This Kit (CUS-FP-13SX)

This listing includes the core components required for the FOLDY 13SX (CUS-FP-13SX) configuration:

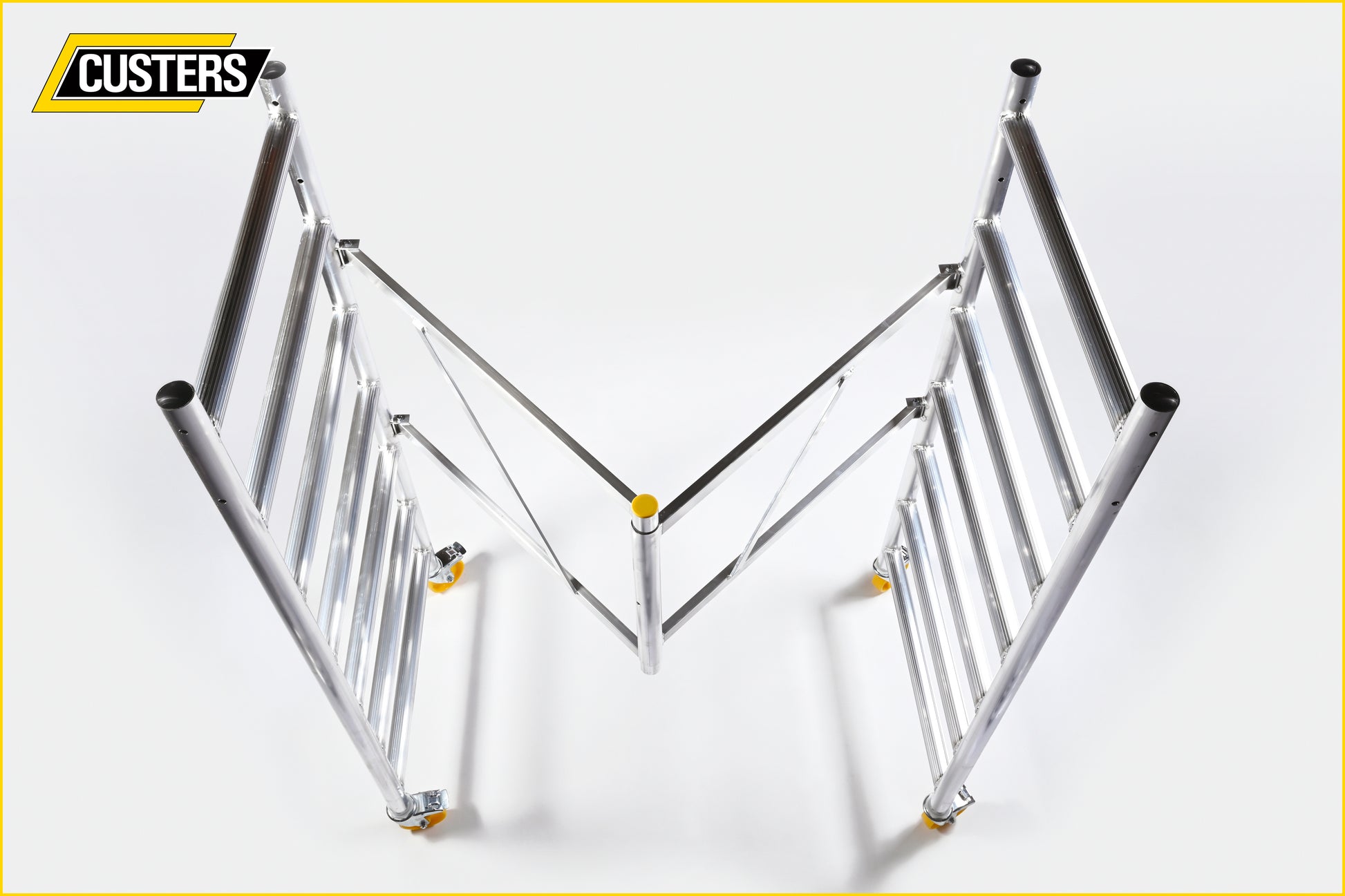

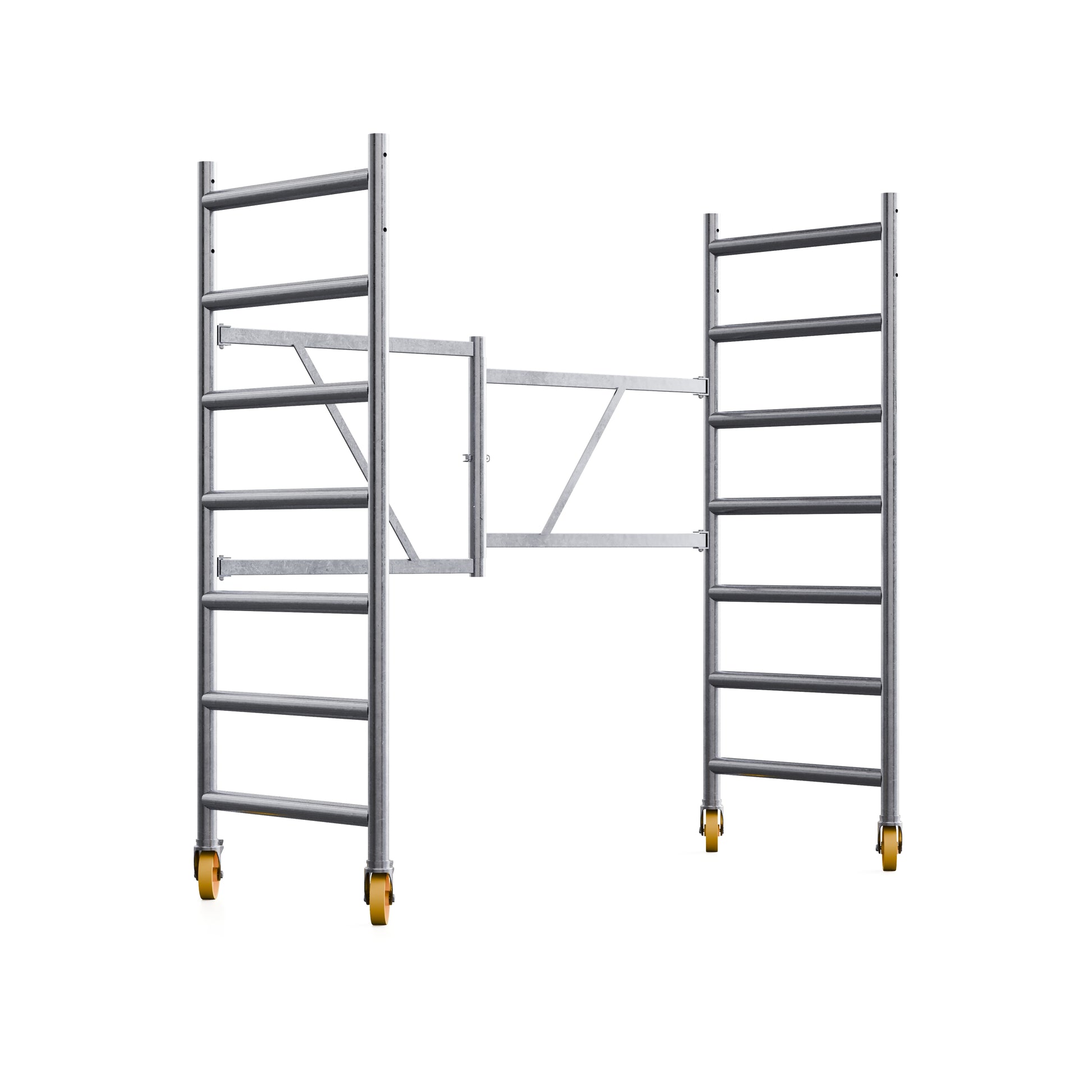

• 9501.771.010 — Folding Frame (Qty 1)

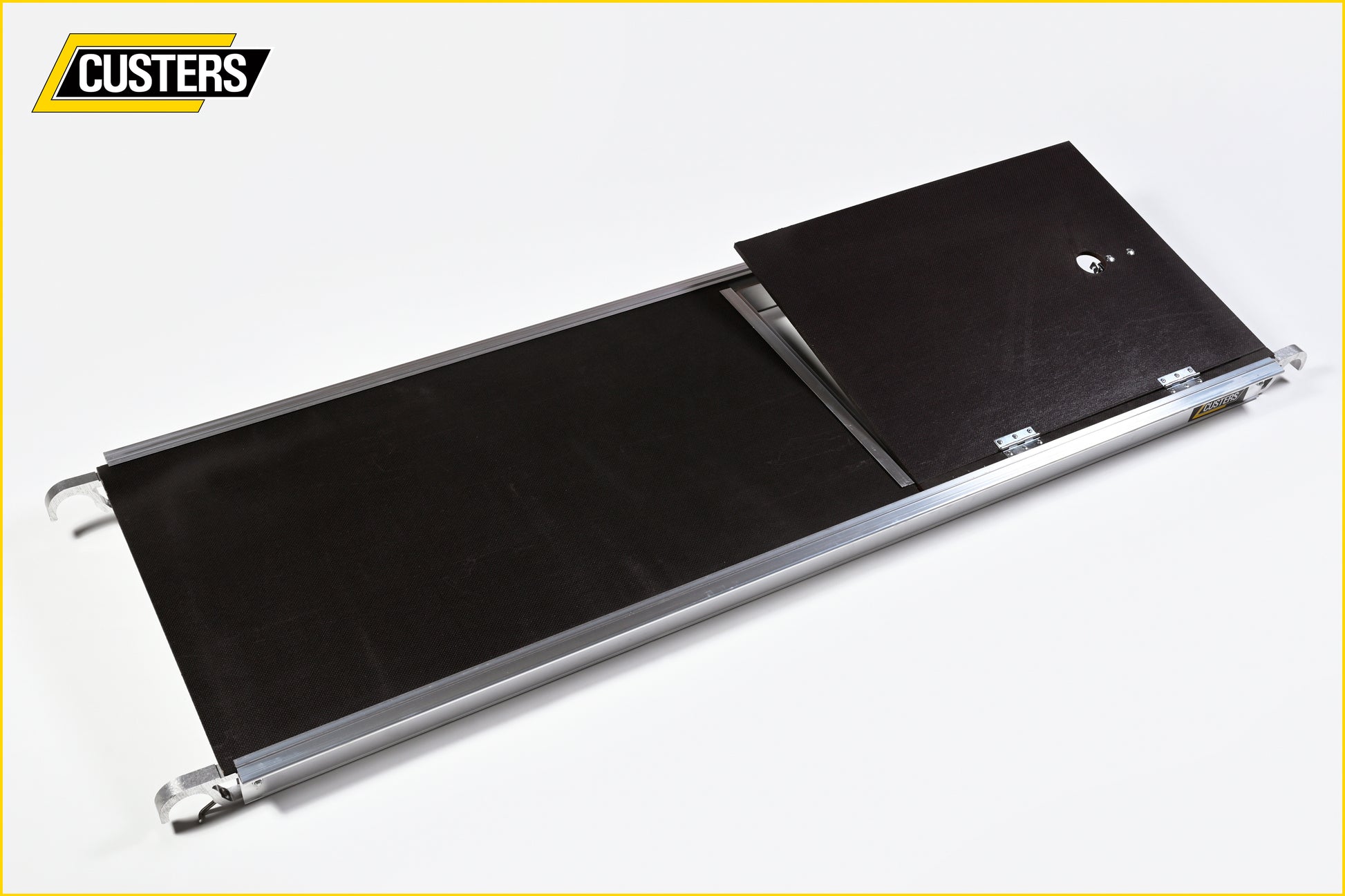

• 9501.316.015 — Trapdoor Platform (Qty 1)

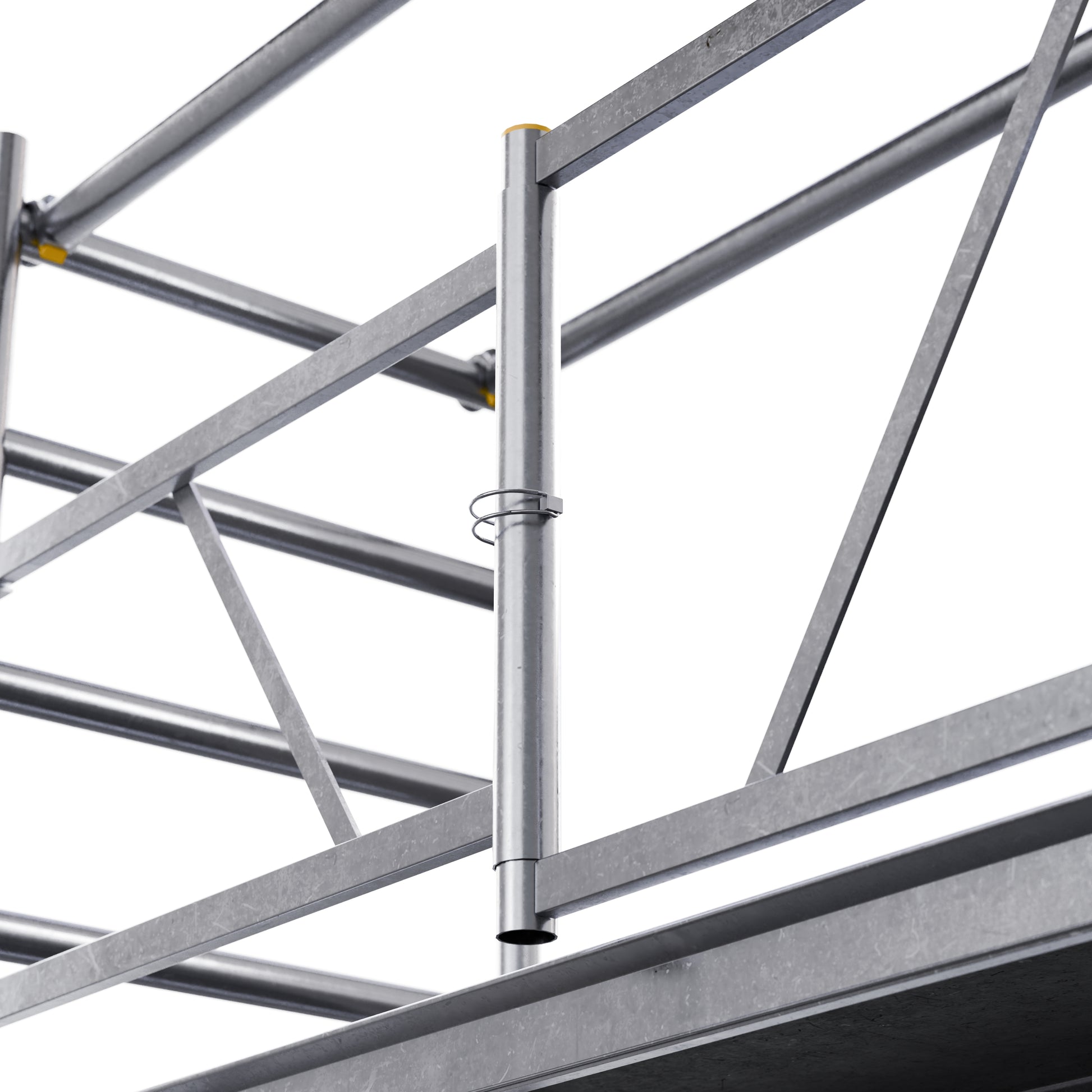

• 9501.720.001 — End Guardrail Frame (Qty 2)

• 9501.200.058 — Horizontal (Qty 4)

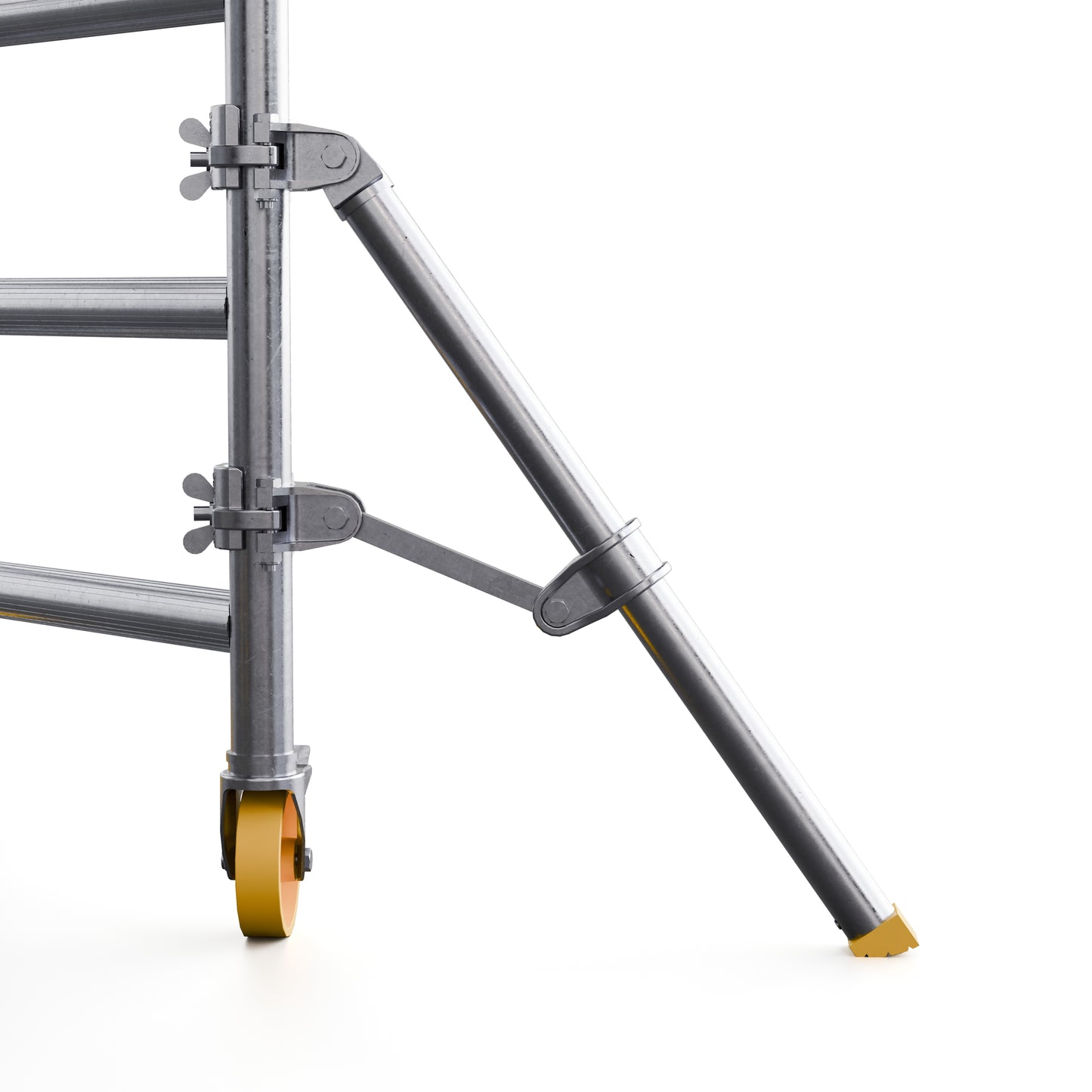

• 9501.770.100 — Foldy Outrigger Large (Qty 4)

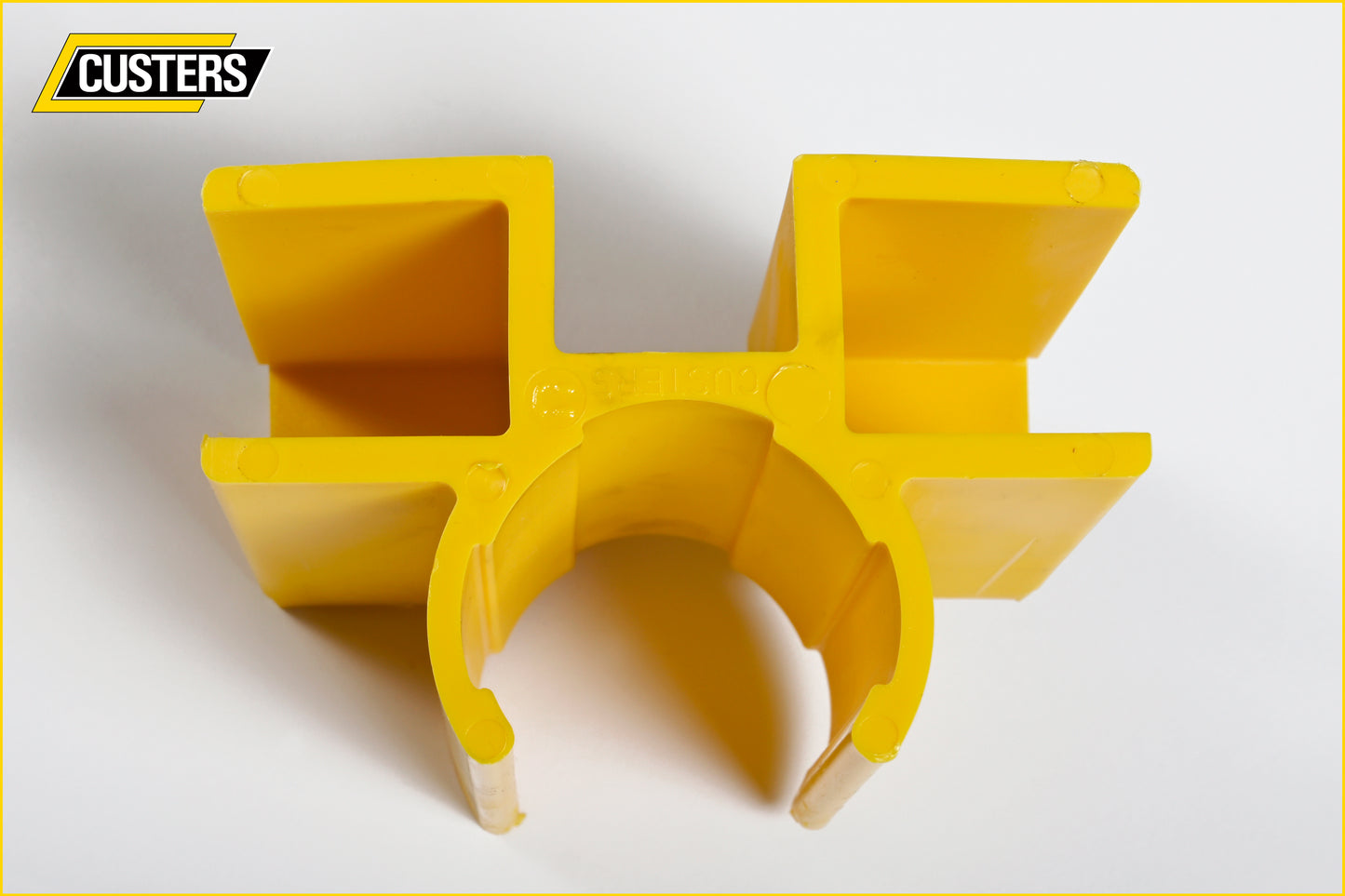

• 9501.800.087 — Toeboard Holders (Qty 4)

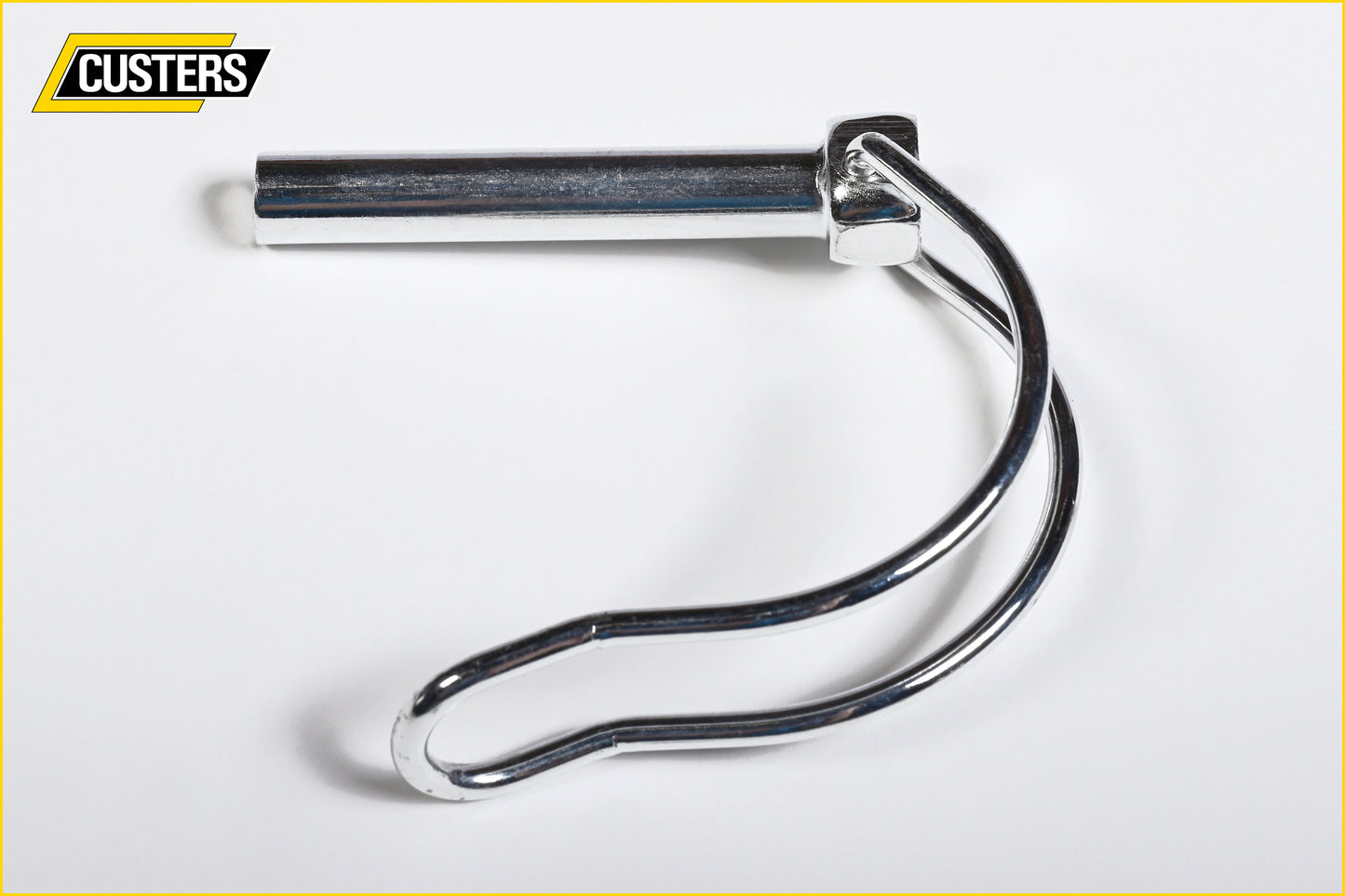

• 9501.410.162 — Securing Pin / Clip (Qty 5)

Total kit weight: 138.53 lbs

✅ Compliance & Standards

All CUSTERS® scaffold towers are engineered, tested, and manufactured to meet or exceed the following requirements when assembled and used according to manufacturer instructions:

• CSA S269.2-21 (Canada)

• EN 1004-1:2020 (Europe)

• ANSI A10.8-2019 (United States)

• OSHA 29 CFR 1926 Subpart L (United States)

Required components for compliant use include:

• Full guardrails

• Stabilizers / outriggers (as required for the configuration)

• Toeboards (as required)

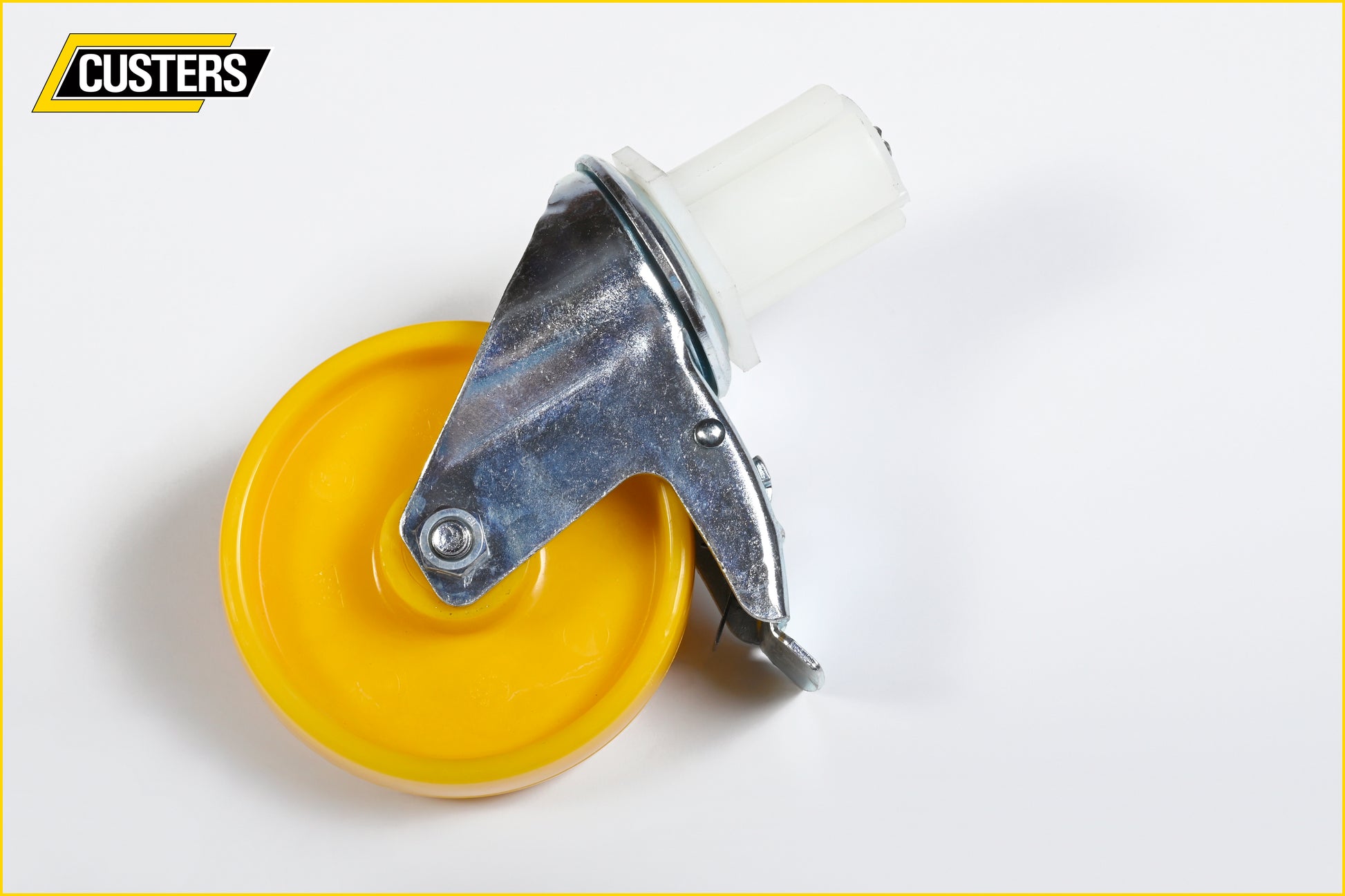

• Locking casters

• Platform access

No component removal permitted.
Designed and tested to meet CSA, EN, ANSI, and OSHA requirements.

✅ Guardrails & Fall Protection Guidance

Guardrail and fall-protection requirements vary by jurisdiction, jobsite policy, and application.

That said, for safety and best practice, we strongly recommend using guardrails whenever feasible—especially for repetitive work, longer duration tasks, or when working near edges, openings, or uneven surfaces.

Recommendation for buyers:

• If you are working near or above 10 ft working height, the 13SX package is a smarter long-term choice versus a base scaffold setup.

• Outriggers improve stability and help support proper setup in professional jobsite conditions.

⚠️ Fall Arrest Anchorage Warning (Important)

This scaffold tower is not an approved anchorage point for a personal fall arrest system (PFAS). Do not attach lanyards, lifelines, SRLs, or anchors to the tower. If fall arrest is required, use an independent, approved anchorage that is properly rated and installed in accordance with the applicable regulations and jobsite safety plan.

✅ Ordering Notes

• This listing is for CUSTERS Foldy 13 Pro Series — Guardrails + Outriggers + Toeboard Holders — Model CUS-FP-13SX

• Need a smaller package? See CUS-FP-13S (Guardrails only)

• Need more height? Ask about FOLDY 18SX configurations

• Not sure what you need? Message us and we’ll recommend the right setup for your job
